Protocol 0.9 · WebSocket + JSON · local network · no account, no SDK

Companion API

The big picture

Three things are involved, and each one is good at something the other two are not. The whole design follows from keeping those jobs apart.

Nobody has to trust anybody else with a job they are not equipped for. Your game does not need to learn Bluetooth, FTMS quirks or what a given trainer will refuse. The phone does not need to know what a peloton is.

How the data moves

Four flows, in a loop that closes several times a second. Bluetooth on one side, a WebSocket on the other.

Three decisions worth knowing about

The phone commands a force, not a gradient. The obvious design is to pass your gradient straight to the trainer and let its own road model do the rest. That fails twice. On flat ground the gradient is zero, so scaling it by a gear scales zero and shifting does nothing at all. And a trainer's own air-resistance term comes from its flywheel speed, which reflects the one real gear the bike is parked in rather than the virtual gear the rider chose. So the phone runs the road model itself, where the virtual speed is known, and hands the trainer a force.

You own speed; the phone tells you what the legs are producing. Every tick, the phone reports the speed the rider's cadence and chosen gear are turning out. A chain does not slip, so that is not an estimate of their speed, it is their speed, and it is known on the first turn of the crank. Take it, apply whatever your world adds - a draft, a soft surface, a headwind - and send the result back as the speed you want ridden.

Trust is granted once and can be taken back. A stranger presents the pairing code shown on the phone. A companion the rider has paired proves itself with a key instead and connects silently. Either way the phone only listens while the rider has Companion mode open: there is no background service and no permanently open port, which is the most valuable property in the whole design and the reason pairing did not spend it.

The phone never learns where the rider is. It is told a gradient, a speed, and cumulative totals for the ride record. None of those is a position and nothing could reconstruct one. If you later choose to hand over the shape of the course so the ride saves with a map on it, that arrives as a whole road rather than as a location, and it is entirely optional.

Connecting

Finding the phone

The phone opens a WebSocket server when the rider starts a companion ride, and closes it when the ride ends. It is not a background service and not a permanently open port.

The port is ephemeral and different every ride, so never hardcode it. There are three ways to learn it, and the third always works:

• A UDP beacon on port 47601, the one fixed port in the protocol, because a listener cannot discover the port it is supposed to listen on. A small JSON datagram, once a second while nothing is driving the ride and every five seconds once something is. Easiest path for a game engine, which will have a UDP socket but probably not a DNS-SD library.
• mDNS / DNS-SD, service type _indoorbike._tcp, with the port in the SRV record. The standard path, and the one that fails silently on guest Wi-Fi, mesh routers and most corporate networks.
• Typed in. The pairing screen always shows the address, the port and the pairing code as text. Offer a manual connect form and a rider on a hostile network loses the convenience rather than the feature.

{ "t": "indoorbike.companion", "proto": "0.1-0.2", "path": "/companion",
  "port": 47612, "app": "2.1.0", "session": "3f9a1c",
  "name": "Indoor Bike", "paired": false }

The phone does not put its own address in the payload. The datagram already arrived from an address that is reachable by construction, which is more than can be said for any of the several addresses a phone might nominate. Take the source address of the packet.

The pairing code is deliberately absent from the beacon. Discovery answers which phone; pairing answers may you drive it. Broadcasting the code to the subnet would collapse the two.

The pairing code

Six characters, shown on the phone, fresh for every ride and never reused. The alphabet leaves out the characters people confuse - no O or 0, no I or 1, no S or 5 - because a rider is typing it off a phone propped on the handlebars.

The handshake

Open a WebSocket to ws://<address>:<port>/companion and send hello as the very first frame. Anything else first is refused as unauthorised.

{ "t": "hello",
  "protoMin": "0.1", "protoMax": "0.2",
  "token": "8F3K2M",
  "client": { "name": "Alpine Climb", "version": "0.3.1", "platform": "windows" },
  "role": "controller",
  "capabilities": ["summary", "course", "setState"] }

{ "t": "welcome",
  "proto": "0.2", "app": "2.1.0", "sessionId": "3f9a1c", "tickMs": 250,
  "honours": ["gradient", "speedMps", "distanceM", "ascentM"],
  "capabilities": ["requestShift", "label", "summary", "course", "setState"],
  "role": "controller",
  "rider": { "massKg": 78.0, "ftpWatts": 250 },
  "bike":  { "massKg": 9.5, "drivetrain": "road-double" },
  "gears": [ { "i": 0, "ratio": 1.21, "label": "34 x 28", "loadFactor": 0.72 }, ... ],
  "gearIndex": 6,
  "trainer": { "name": "KICKR CORE", "connected": true, "control": "sim" },
  "limits": { "gradient": [-0.3, 0.3], "speedMps": [0.0, 30.0] } }

Three fields in the welcome carry more weight than they look. honours is what this build actually acts on in a world frame, which is not the same as what the protocol defines - a field not listed is ignored and warned about. capabilities is the same idea for whole frames. Branch on it rather than on the version number. gears is the rider's whole drivetrain with real teeth on it, so you can draw "34 x 17" rather than "gear 11 of 20".

Pairing permanently, so nobody types a code again

The pairing code is per ride. New code, new port, every time. That is the right ceremony for a stranger and the wrong one for the machine in the same room the rider has already trusted twenty times.

Pair once, on both devices, and a companion that finds the phone afterwards connects straight into the ride: no code, no prompt, nothing to tap.

Pairing, once

Send a stable deviceId in your hello, ask your user whether they want this, then ask the phone:

{ "t": "pairRequest", "name": "Alpine Climb" }

The rider is asked on the phone. Agreeing on both devices is the whole ceremony, and what comes back is a key to keep:

{ "t": "paired", "deviceId": "<the app's id>", "name": "Indoor Bike",
  "key": "<64 hex chars>" }

Or a pairDeclined, which is not an error. The ride carries on exactly as it was; offer to ask again next time.

Reconnecting

Send hello with your deviceId and no token. The app answers with a challenge instead of a welcome:

{ "t": "challenge", "deviceId": "<the app's id>", "nonce": "<32 hex chars>" }

Look up your key for that deviceId, make a fresh random 16-byte nonce, and answer:

{ "t": "pairProof", "nonce": "<your 32 hex chars>", "proof": "<64 hex chars>" }

proof = hex(HMAC_SHA256(keyBytes,
        "indoorbike-companion-v1:companion:" + appNonce + ":" + yourNonce))

The ordinary welcome follows, carrying the app's own proof over the same two nonces with :app: in place of :companion:. Verify it. Skipping that leaves you trusting whatever answered on the expected port, which is the position pairing exists to get you out of.

Everything is lowercase hex and one HMAC-SHA256, which is in the standard library of every language and engine anyone would reach for. That is deliberate: a key agreement no game engine can implement would protect nobody.

What it does not do

Encrypt anything. The socket is plaintext before and after pairing, so anything already on the network can read the rider's watts either way. Pairing answers who is driving, not who else can see. Encrypting the stream would mean every companion needing TLS with custom certificate pinning, which is awkward in a game engine and would price out exactly the people this API exists for.

Roles

One controller drives the ride. Any number of observers can watch: they receive everything, and may send nothing but ping. A second controller is refused while one is connected.

An absent role means controller. Any value the phone does not recognise - including the wrong case - grants observer instead, because a value that cannot be interpreted must not be read as a request for control.

What your companion sends

world - the road, 4 to 10 times a second

The one frame the mode cannot work without.

{ "t": "world", "seq": 412, "gradient": 0.062, "speedMps": 7.42,
  "distanceM": 8412.5, "ascentM": 214.0 }

requestShift - ask for a gear

Signed steps; positive is harder. Your companion has no shifting logic of its own: it does not know the drivetrain's ratios or its limits, so it asks, and the phone answers with a gearChanged event whether or not the gear actually moved.

{ "t": "requestShift", "steps": -1 }

Capped at ten a second. A held gamepad button must not dump the rider into the top gear, and must not kill the connection either, so the surplus is warned about and dropped.

course - the road this ride is on

Optional, and the difference between a ride that lands in the rider's history as a named course with a map on it and one that lands as a column of numbers.

{ "t": "course", "name": "Volcano Circuit", "world": "Watopia",
  "distanceM": 12400, "ascentM": 180,
  "shape": "_p~iF~ps|U_ulLnnqC...", "profile": [412, 418, 431, 447] }

A route ride in the app can keep a thin record because its route is not thin: the session names a course in the app's own catalogue and everything downstream fetches it back. Your course exists nowhere the app can reach, so it travels with the ride instead.

Send it whenever you like, as often as you like - fields merge. A later frame that leaves a field out keeps whatever was already known. So the usual shape is a name early, while the ride is happening and the phone's display can show it, and the shape at the end, which is the only order a free-roaming world can manage: you do not know what road the rider took until they have taken it.

Everything here describes the course, never where on it the rider is. A companion that would rather disclose nothing sends none of it, and the ride saves exactly as it would have: real numbers, no map.

An over-long shape or profile is refused whole rather than truncated, with a warning saying so. Half a polyline is not a shorter road, it is one that leaves the map.

A field that cannot be read at all, a distanceM of "3.4 km" or a null in the profile, is left out with a rejected warning naming it, and the rest of the frame still lands. Elevations are whole metres; a sample with a fraction is rounded.

setState - start, pause and resume the recording

{ "t": "setState", "state": "paused" }

This is also how a ride starts. The app prepares the ride the moment you connect and begins streaming telemetry and applying the road immediately, but the clock does not run and nothing is written down until "active" arrives. Send it when your world says the ride has begun: past the menus, off the start line, whenever that is for you. Until then a rider can spin up freely and none of it lands in their ride record.

There is deliberately no countdown. Your game has its own idea of when a ride begins and the app cannot see it, so it does not count anybody in. The phone shows "Ready, start the ride in the game" while it waits.

If your world has a pause - a menu, a loading screen, a rider who stopped - use this, or the ride record quietly accumulates minutes of zeroes that nobody rode. state is "active" or "paused"; anything else is refused rather than guessed at, because reading a misspelling as "paused" would silently stop recording a ride the rider is still doing.

It is a request rather than a command, and it can legitimately do nothing: a ride that has not started cannot be paused. The stateChanged event is the answer, and it arrives for pauses you did not ask for too.

drivetrain - put the rider on your bike

Optional, and most companions should leave it alone. Without it the rider rides the drivetrain they chose in the app's settings, which is a reasonable bike and the one they picked. Send this when the game has an opinion: a mountain stage that hands out a 32-tooth granny ring, a track session on a fixed gear, a bike the rider unlocked.

{ "t": "drivetrain", "name": "Race bike",
  "chainrings": [50, 34],
  "sprockets": [11, 12, 13, 14, 15, 17, 19, 21, 23, 25, 28, 32],
  "wheelCircumferenceMm": 2105 }

1x, 2x and 3x is the length of chainrings. There is no separate field saying which, because a field like that can disagree with the list beside it and then somebody has to decide which one is lying.

An invalid bike is refused whole, not repaired. A drivetrain describes a physical object, so a zero-tooth sprocket is a bug rather than a preference: rounding it up quietly would hide the bug and hand the rider a bike nobody designed. You get a warning naming the offending number, and the rider keeps the bike they had.

The ladder you get back is shorter than the list you sent. Combinations within 2.5 % of one already in the ladder are dropped, so a 2x with fifty-odd pairings comes back as about twenty distinct gears. The app answers with a drivetrainChanged event carrying the whole resulting ladder and the gear the rider is now in. Draw your gear display from that, not from what you sent.

Send it during setup, before setState: "active". Nothing is persisted: the rider's own setting is untouched underneath and comes back when the ride ends.

controls - lend the rider your phone

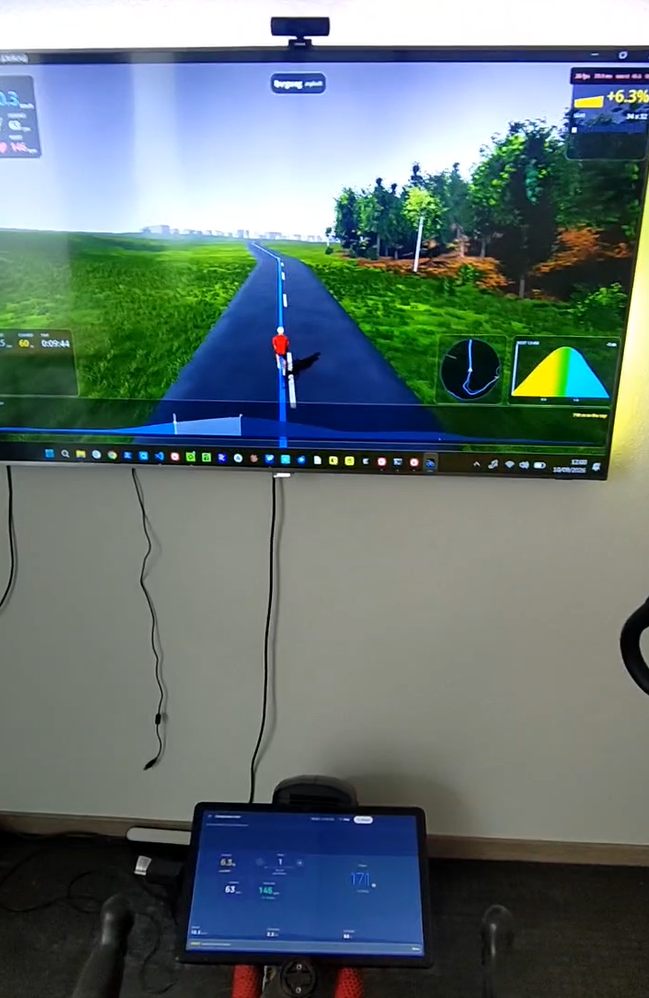

Your game is on a television across the room. The rider is on a bike, with a phone on the bars and no keyboard. When you put a menu up, they have no way to answer it.

{ "t": "controls", "visible": true,
  "title": "Choose a route", "hint": "Pick a lap count",
  "enabled": ["up", "down", "enter", "back"] }

While visible is true the app draws a control pad on the phone, and every press comes back as a controlPressed event naming one of up, down, left, right, enter, back.

enabled is the part that matters. The app is driving a screen it cannot see. It has no idea whether what is up is a list of four things, a yes/no dialog, or a loading state that ignores everything, so controls you do not list are drawn visibly dead rather than hidden. A rider must never press something that looks live and get nothing, and the pad must not reshuffle under a thumb already moving toward a button.

Send a fresh frame whenever selectability changes; the last one wins. Send visible: false when the menu closes, or the rider is left holding a remote wired to nothing. The pad is taken away automatically if you disconnect. An unrecognised control name is refused with a warning naming it, and the rest of the frame still lands.

Nothing here reaches the trainer, the physics or the ride record. It is a remote control that happens to share a socket with a bicycle.

brand - your look on the phone

The rider has two screens in front of them: yours, and the phone on the bars. Send brand once after welcome and the phone's ride header takes on your icon, your name and your colours, so the two ends read as one thing. Optional, controller only, and advertised as the brand capability from protocol 0.8.

{ "t": "brand",
  "name": "Col de Berg",
  "icon": "iVBORw0KGgoAAAANSUhEUgAAAQAAAAEA...",
  "colors": { "accent": "#E4572E", "onAccent": "#FFFFFF", "header": "#3B1F2B" } }

Fields merge. Leave a field out and it keeps what it had; send it as null to clear it. So send the icon once and change colours later without sending the picture again.

It decorates, and never touches meaning. Your colours go on the header band, the line under it, your icon, the flash of a shift paddle or remote button while it is pressed, and the panel that appears if you disconnect. Power, heart-rate and gradient colours, warnings, the app's own buttons and the pairing dialog stay the app's: the rider has learnt what those colours mean, and the dialog that asks them to trust you is not yours to dress.

A bad field costs only that field: an icon that is not a square PNG is refused with a rejected warning saying why, and your name and colours still land. Nothing is stored; it lasts for the session.

screenshot - a picture the rider keeps

List screenshot in your hello capabilities and the rider gets a camera button on the phone's ride header. Each tap sends you a requestScreenshot; answer with a picture of your screen and the phone keeps it with the ride, on its summary, in History and on the session panel. Controller only, from protocol 0.9.

{ "t": "requestScreenshot", "id": 3, "maxEdgePx": 1920 }
{ "t": "screenshot", "id": 3, "image": "/9j/4AAQSkZJRgABAQAAAQABAAD..." }
{ "t": "screenshot", "id": 4, "error": "The game is on a loading screen" }

The phone waits 15 seconds, then tells the rider no screenshot came; a picture that arrives later is still kept. Screenshots stay on the phone: they are not exported, uploaded or synced, and deleting the ride deletes them.

label, finish and ping

label names the ride, which course also does - send either. finish ends it: companion mode has no route of its own, so nothing but you can know when the ride is over. ping is answered with pong and is usually unnecessary, since the WebSocket has its own.

{ "t": "label", "name": "Stelvio, north side", "world": "Alpine Tour" }
{ "t": "finish" }
{ "t": "ping", "id": 17 }

A finish always ends the ride. If its summary cannot be read, the unreadable part is left out with a rejected warning, and the ride saves without the map. Builds up to 2.2 refused the whole frame instead, so the ride never ended and the next one was saved on top of it.

A session is many rides

finish ends a ride. It does not end the connection. The phone writes that ride to the rider's history immediately, with nobody tapping anything, and stays where it was: connected, negotiated, streaming telemetry, clock stopped. Send setState: "active" again and the next ride starts. Between rides the trainer is not being driven, just as it is not before the first ride: keep your world frames going, and the gradient you are sending takes effect the moment the next ride begins.

setState active  ->  ... riding ...  ->  finish
                                          <- stateChanged finished   (saved to history)
                                          <- stateChanged paused     (ready for another)
setState active  ->  ... riding ...  ->  finish

A rider on a bike does not get off it to confirm a lap, so nothing asks them to. There is no summary screen between rides; the strip at the top of their HUD names the ride that was just saved and then keeps a count for the rest of the session.

4005 now means the rider left Companion mode on the phone. That is the only thing that really ends a session, and it is the last frame you will get.

When your companion goes away

If your socket closes without a finish, you have stopped driving the ride, not ended it. The phone pauses the ride, trainer off and nothing recorded, and tells the rider in as many words: Ride paused, your companion disconnected, and the rides this session. There is no timeout; it waits for you.

When you reconnect, the ride carries on by itself. Same ride, same clock, and a stateChanged: active straight after welcome so you know. Came back into a menu? Send setState: "paused". A ride you had paused yourself before dropping stays paused. If you never come back, the rider taps End ride and it is saved as an ordinary completed ride.

What the phone sends back

telemetry - every 250 ms

Pushed to every connection that has completed a handshake, controllers and observers alike, at the rate the welcome named. Interpolate for rendering rather than asking for more: the physics only moves four times a second, and a faster stream would be inventing data.

{ "t": "telemetry", "seq": 1043, "tMono": 128500, "state": "active",
  "power": 243, "cadence": 88, "hr": 152, "speedMps": 8.33,
  "gearIndex": 11, "loadFactor": 1.18,
  "appliedGradient": 0.062,
  "trainerForceN": 96.4, "trainerGradePercent": 11.7,
  "elapsedS": 512 }

The last two look like internals and are published on purpose. They are literally what the machine was asked for, and without them nobody building against this can tell a protocol bug from an honest disagreement about physics.

A word about speedMps

This is the single most common way a new companion feels broken. A chain does not slip, so cadence multiplied by the gear's development is the rider's speed, and it is known the moment the crank turns. If you integrate a speed out of power instead, you are modelling a bicycle accelerating from a standstill, and what the rider sees is watts and cadence arriving from the trainer while the speed sits at zero for five to ten seconds - at the start of a course, and again every time they stop and start.

Take it, apply your world's own effects, send the result back. The two agree wherever the rider is settled and are meant to disagree everywhere else. Only when the field is absent should you fall back to your own model.

event - things that cannot wait for the next tick

warning - non-fatal, and worth reading

Surface these in development builds. They are the difference between "drafting does not work" and "this build ignores that field".

Rates, the deadman, and failure

Rates

The deadman

If your world frames stop for 1.5 seconds, the phone ramps the gradient to flat over the next two seconds and tells you it is doing so. Speed is held rather than zeroed, so the rider lands on an ordinary flat road at their current pace rather than against nothing.

This fires on a loading screen, an alt-tab that pauses your main loop, a garbage-collection stall, or a menu. Keep sending world whenever the rider could still be pedalling, even if your world is paused - send the current gradient and a speed of zero rather than nothing at all.

When something goes wrong

A fatal failure sends an error frame and closes with a code and a reason. Both, always: a client that fails version negotiation may close the socket before it processes the frame, and then the close reason is the only thing it ever sees.

Versioning, and how this grows without breaking you

You declare a range in hello; the phone picks the highest version both ends speak and states it in welcome. Check it against your own range - the phone may legitimately choose a version you listed but have since dropped, and a client that trusts the welcome blindly fails somewhere far less legible.

Four tolerance rules, in both directions, and they are not optional:

1. Ignore unknown fields. Never an error.
2. Ignore unknown frame types. Keep the socket open.
3. Tolerate unknown enum values. Fall back to a documented default.
4. Never silently drop something meaningful. The phone warns once per unhonoured field; do the equivalent.

These are what let a companion written today share a socket with a phone shipped next year. Breaking them is the most common way a companion becomes fragile.

Building one

The order that works

1. Connect and handshake. Manual address, port and code entry first. Discovery can wait; nothing works until the handshake does.
2. Render telemetry. Prove the socket both ways before driving anything: show power, cadence, heart rate and gear.
3. Send a flat road. gradient: 0.0 and the speed from telemetry. The trainer should feel like flat ground. If it does not, stop and fix it here.
4. Add terrain. Now the gradient comes from your world.
5. Add gears. Draw the display from welcome.gears, wire up shift requests, handle changed: false.
6. Add discovery.
7. Add course, setState and finish, which are what make the ride land in the rider's history looking like a ride.
8. Ride twice without restarting anything. Finish a ride, send a new course, and start another on the same connection. This is where most companions turn out to have assumed a ride and a session are the same thing.

Do not start at step four. A companion that renders a mountain before it has proven a flat road has two untested systems and no way to tell which one is wrong.

The mistakes that cost the most time

The light feeling at the start of a ride

Worth knowing before you go looking for it in your own code: the app helps riders off the line, and it is not honouring your gradient any differently while it does.

Pulling away from a standstill is genuinely hard. At walking pace almost none of the resistance is air, so what is left is gravity, rolling, and the mass of the bike and rider being accelerated. Power is force times speed, so at 2 km/h the power is trivial while the force at the pedals is not: the rider gets a heavy, grinding pedal and no reward for it. Outdoors the answer is to stand up for three strokes. Indoors, seated, with no scenery moving yet, it reads as the app being broken.

So for the first few seconds the app commands about half the real force, then fades to full physics over ten seconds once the rider passes 5 km/h. A ride that feels light at the start and normal thereafter is this, not your world. telemetry.appliedGradient will confirm your gradient arrived intact.

Smoothing the gradient

This one deserves its own note, because a route file does not give you a usable gradient and nothing on the phone will save you: the gradient you send goes into the force on the rider's legs almost unaltered.

Differencing consecutive altitudes gives a step function. Measured on a real 6.7 km GPX resampled every ten metres, the worst jump between two neighbouring samples was 13.4 percentage points - nearly half the range from flat to the 30 % ceiling, arriving in one go, once every ten metres of road.

There are two smoothing steps and the first does most of the work. Resample the elevation onto a fixed grid, smooth the elevation itself over about ±50 m, and only then take a centred difference over about 40 m. On the same route that takes the worst jump from 13.4 points to 3.0 with the difference alone, and to 0.6 with both. Three points is still a 25 N kick, which is why the elevation smoother is not the optional half.

Do it once, where the route is prepared, and read it back at ride time. Deriving it twice with slightly different arithmetic - once for the trainer, once for whatever you draw - shows up as resistance that disagrees with the number on the screen.

Building one with an agent

There is a packaged skill for this. It is written to be read by a coding agent, and it carries the things that are obvious only after you have got them wrong: the exhaustive frame-by-frame reference, the ownership rules, the rates, the deadman, the failure modes, a worked transcript of a whole ride, and a checklist.

It is meant to be copied out of the repository wholesale. Nothing in it depends on this app's source.

Install it

git clone --depth 1 https://codefloe.com/SnappTechnology/IndoorCyclingApp.git indoorbike-src
mkdir -p .claude/skills
cp -r indoorbike-src/skills/indoorbike-companion .claude/skills/

cp -r indoorbike-src/skills/indoorbike-companion ~/.claude/skills/

On Windows the paths are .claude\skills and %USERPROFILE%\.claude\skills; the copy is the same. Other agent tools have their own place for this - the skill is plain Markdown and does not care.

Then ask for what you want built. The skill is invoked by name, or picked up automatically when the task is about driving an Indoor Bike ride.

What is in it

If your agent cannot clone, point it at the files directly - they are plain Markdown and fetchable:

Where the rest lives

This page is the human explanation. Two documents in the repository go further: the specification with the reasoning behind every decision, and the original design argument that produced the split between the phone and the companion in the first place.

Licensing

The Indoor Bike app is GPLv3, and its source is linked above. What is described on this page is a wire format: your companion is a separate program that opens a socket and exchanges JSON with it, and it links none of the app's code. The specification and the skill are published to be read, copied and implemented - that is what they are for.

If you are building something commercial and want the licensing position in writing rather than inferred from a web page, ask. It is a reasonable thing to want and it is better answered directly than guessed at.
